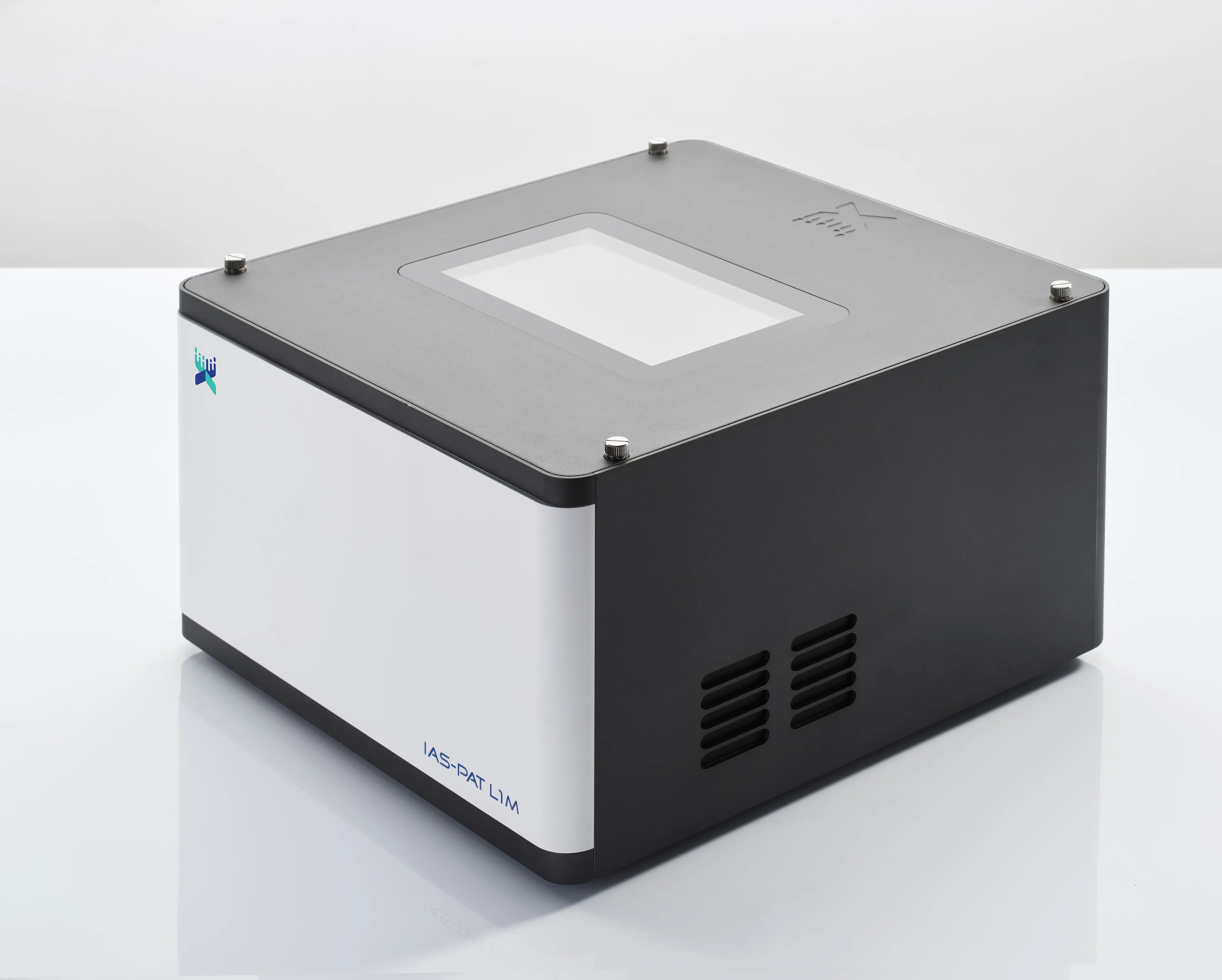

IAS-PAT L1M
Safe, Durable, and Reliable in Harsh Environments
The Perfect Solution for Efficiency Gains
Robust, Explosion-Proof Design Ensures Safe Production
The IAS-PAT L1M features enhanced heat dissipation, modularity, and pressure testing, with a high explosion-proof rating. Supports IIB/IIC-type enclosures, reducing manual sampling, chemical exposure, and ensuring stable production.
Optimized modeling for online process control to enhance production efficiency
The IAS-PAT L1M online NIR analyzer enables rapid offline modeling, real-time parameter tracking, and clear data visualization to enhance production efficiency and ROI.
Flexible Probes for Any Scenario
Modular optical probes adapt to various process positions. Rapid customization available for unique requirements.
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Application
-
Palm Industry
· Detection of free fatty acids,moisture,DOBI(detection of bleachability index),and oil
· Content in crude palm oil , palm kernels,palm kernel cake,and production waste liquids -
Chemical Industry
· Online analysis of active chlorine and free alkali content in fine chemical production.
· Online analysis of ethanol, glucose, and other key components in ethanol fermentation broth.
· Online analysis of octane number, aromatics, and olefins in petrochemical production of finished oils.Chemical Industry
-
Food Industry
· Detection of oil changes during the frying process in food processing.Food Industry
-
Pharmaceutical Industry
· Online monitoring of active ingredient content during the concentration and extraction of traditional Chinese medicine.Pharmaceutical Industry
Calibration and Sampling Accessory
-
AccessoryDescription
-
Flow Cell Assembly
Material:Main body made of 316L stainless steel.Components: Window holder, sapphire window, flexible tube, collimator, liner (316L stainless steel for non-corrosive liquids; PTFE for strongly oxidizing or corrosive liquids).Size: DN25/DN50.Function: The flow cell is used for liquid detection in pipeline scenarios. -
Optical Fiber
Material:Low-hydroxyl quartz.Length: Customizable.Interface:SMA905.Function: Connects to the flow cell to transmit optical signals. -
Diffuse Reflectance Probe
Application: Suitable for detecting solid particles, powders, or pastes in pipelines and equipment. -
Optional Accessories
PC console (including operating system), keyboard, mouse, monitor, industrial control adapter module.Function:Flow cell, optical fiber, explosion-proof corrugated tube
Technical Specifications
|
Parameter |
Description |
Parameter |
Description |
|
Wavelength range |
900-1700nm (typically 950-1650nm) |
Light Source |
Integrating sphere halogen tungsten lamp |
|
Resolution |
<16nm |
Auto-Calibration Maintenance |
Automatic wavelength and reference calibration |
|
Spectroscopy Principle |
Grating |
Display |
7-inch |
|
Detector |
InGaAs detector (256 pixels) |
Vibration |
|
|
Baseline Noise |
≤0.0002AU |
Operating Temperature/Humidity |
-30°C ~+45°C /<90% |
|
Wavelength Repeatability |
≤0.1nm |
Weight |
Main unit: 14 kg; With explosion-proof cabinet: 54 kg |
|
Wavelength Accuracy |
≤1 nm, with built-in auto-detection and calibration |
Dimensions |
L:310mm*W:340mm*H:210mm |
|
Absorbance Repeatability |
≤0.0002AU |
Power Supply |
100-240VAC 50Hz |
|
Detection Time |
0.1S-60S |
Built-in Operating System |
Linux |
Downloads
IAS-PAT L1M Standard Version.pdf
Download
Contact US
Product Information
Quantity
Unit
Piece
Support order samples, customization, wholesale direct, and complete payment. If the product you look for does not have corresponding customized content, pls fill out the form below to contact us, and we will reply ASAP.
