IAS-5100

Pioneer in Grain Quality Assessment
Innovative Blending & Side-Lighting Design

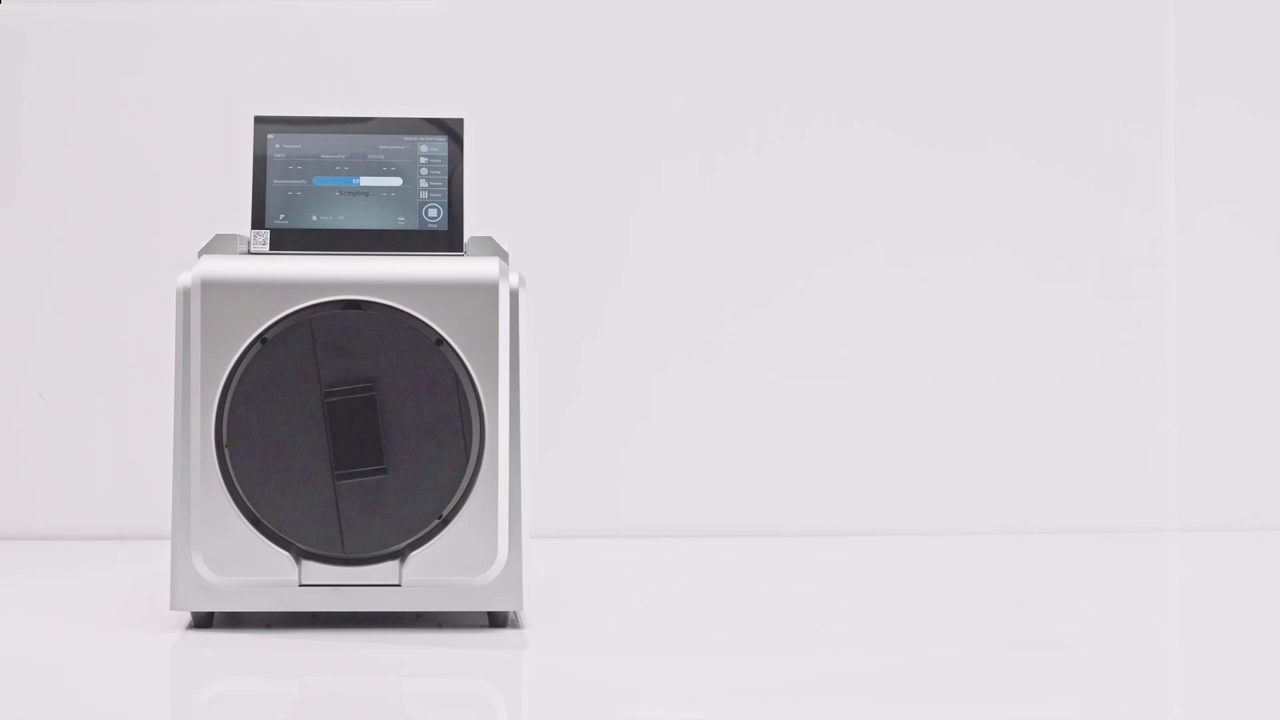

The IAS-5100 portable NIR analyzer features diffuse reflectance through an innovative side-lighting structure and allows continuous blending of granular samples during testing. These designs will improve the accuracy and consistency of the analysis. The prediction models used in IAS-5100 are built on a large database created from extensive sampling, which further enhances the accuracy of the analysis results.

Thanks to its automatic functions, operators without specialized training can conduct testing efficiently. With an intuitive touchscreen interface, IAS-5100 only requires one button to complete one analysis in few minutes and can be used in trading markets, inside trucks, and fields.

+6591995158

[email protected]

IAS-5100

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Features

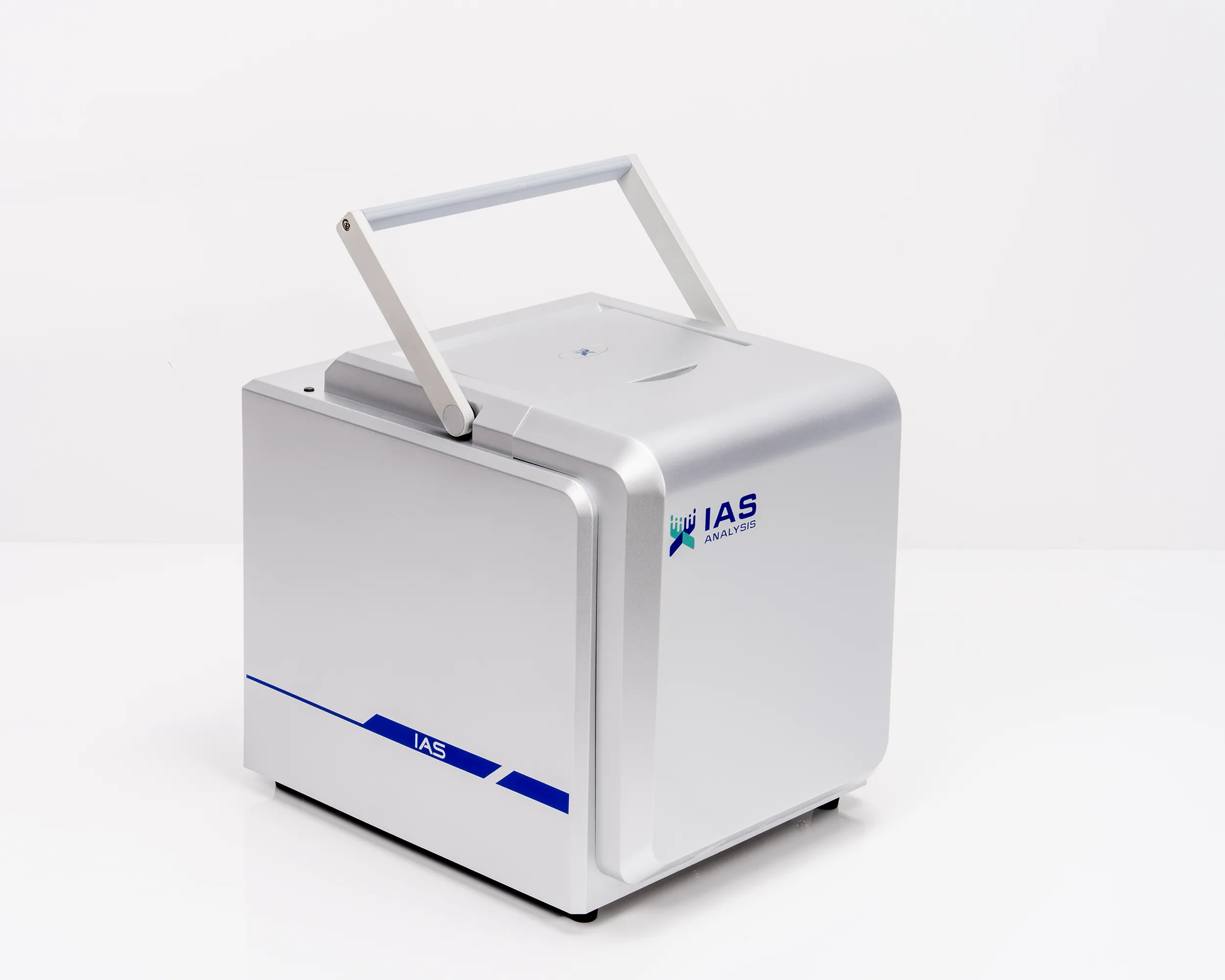

Compact and Portable, Ready-to-Use Anywhere

Small and light, the analyzer is designed for quick analysis in multiple scenarios and saves time and costs.

Innovative Blending & Side-Lighting Design

The analyzer operates based on diffuse reflectance through a side-lighting structure and the blending feature helps collect more sample information and increases accuracy of the result.

User-Friendly Interface

Intuitive touchscreen interface supports one-button quick analysis.

Multiple Size Options for Sample Cells

A range of sample cells are available to suit different samples depending on their quantities and states.

Automatic Self-Maintenance

Fully automated referencing and calibration functions make machine maintenance hassle-free.

Stable and Durable

Long-life halogen-tungsten lamp as a light source ensures durability and reduces maintenance costs.

Application

Grain and Oil Industry

· Precise Analysis, Quality-Based Pricing

Grain and Oil Industry

Calibration and Sampling Accessory

Accessory

Description

Name: 5100-Sample Cell A

Material: Nylon

Dimensions: D: 183mm, H: 103mm, W: 42mm

Function: Suitable for granular samples like soybeans, rapeseed, etc.
Name: 5100-Rotating Disc A

Material: Nylon

Dimensions: D: 186mm, H: 47mm

Function:
1. Carries Sample Cell A, controlled by a motor to rotate samples;
2. Holds reference and standard components for referencing, self-check, and calibration.
Name: 5100-Sample Cell B Cover

Material: Aluminum Alloy (6061)

Dimensions: D: 180mm, H: 13mm (excluding the handle)

Function: Seals 5100-Sample Cell B during rotations to prevent spillage
Name: 5100-Sample Cell B

Material: Aluminum Alloy (6061)

Dimensions: D:174mm, H: 45mm.

Function: Suitable for powdery samples like camellia seed powder, rice bran, rice bran meal, etc.
Name: 5100-Rotating Disc B

Material: Aluminum Alloy (6061)

Dimensions: D: 180mm, H: 30mm

Function:
1. Carries Sample Cell B, controlled by a motor to rotate samples;
2. Holds reference and standard components for referencing, self-check, and calibration.

Explore more

Technical Specifications

Specification	Description	Specification	Description
Wavelength Range	950-1650nm	Dimensions	L:278mm x W:337mm x H:292mm
Resolution	12nm	Weight	5kg
Spectroscopic Principle	Array MEMS Micromirror + Grating	Display	7-inch Touch Screen
Detector	InGaAs Detector	Operational Temperature	5-45°C
Baseline Noise	≤0.0005AU	Operating Humidity	＜RH75%
Wavelength Repeatability	≤0.05nm	Storage Temperature	-20-60°C
Wavelength Accuracy	≤2nm	Light Source	Halogen-Tungsten Lamp
Absorbance Repeatability	≤0.0005AU	Power Supply	24V/3A
Testing Time	≤3min	Power Consumption	25W
Data Interval	1nm	Integrated Operating System within the Device	Linux
