IAS-3100
Empowering Smarter Decision-Making in the Lab
Analysis of Multi-State Samples

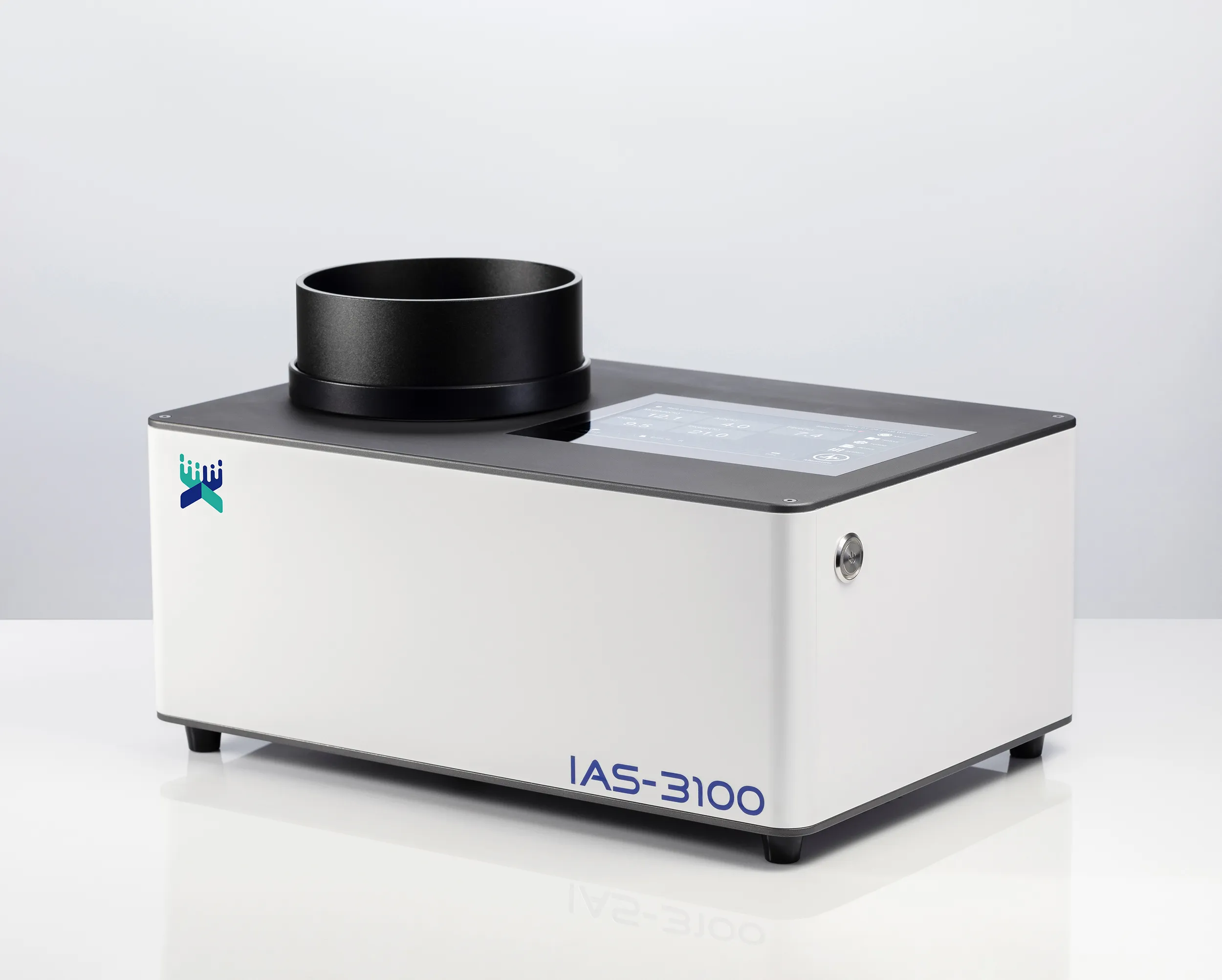

The IAS-3100 laboratory NIR analyzer is suitable for analysing granular, powdery, and liquid samples. Its compact and robust design makes it an ideal choice for real-time laboratory analysis.
The IAS-3100 features a large-area scanning mode, which helps include more sample in one measure and obtain higher-quality spectra. This instrument facilitates batch analysis to reduce manpower needs and increase sample volumes. It supports your daily work by tracking sample quality in real-time. The testing data provided by the 3100 have been reliable for fast-changing samples.
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Product Features
Compact and Portable
Its compact and portable design is adaptable to various situations.
Simple Operation
The testing involves no pretreatment nor chemical reagents. One touch of ‘Start’ button will return analysis of multiple parameters in a short time.
Large-Spot Illumination
The instrument illuminates and collects information from large areas of the sample, improving the accuracy of the analysis.
Multiple Size Options for Sample Cells
A range of sample cells are available to suit different samples depending on their quantities and states.
Automatic Self-Maintenance
Fully automated referencing and calibration functions make machine maintenance hassle-free.
Application
-
Feed Analysis
· Detection of moisture, protein, ash, and other indexs in rice bran, rice bran meal, and soybean meal. -
Fermentation Industry
· Dynamic Control, Precise Node ManagementFermentation Industry
-
Fruit Industry
· Smart Sorting, Quality ControlFruit Industry
-
Tobacco Industry
· Rapid Screening, Effective Quality ControlTobacco Industry
Calibration and Sampling Accessory
.jpg)
.jpg)
-
AccessoryDescription
-
Name: 3100-Medium Sample CellMaterial: Aluminum Alloy (6061)Dimensions: D:138mm, H:25mm(excluding handle)Function: Suitable for small granular (e.g., feed pellets) or powdery samples (e.g., flour, rice bran, rice bran meal) -
Name: 3100-Small Sample CellMaterial: Aluminum Alloy (6061)Dimensions: D:45mm, H:25mmFunction: Suitable for small sample volumes (e.g., herbal powder) and liquid (e.g., milk, soy milk, syrup) -
Name: 3100-Transflection CoverMaterial: Aluminum Alloy (6061)Dimensions: D:38mm, H:8mm (excluding the handle), light path length: 1mmFunction: A transflection cover used with small sample cell, commonly used for sampling transparent liquid -
Name: 3100-Small Cell HolderMaterial: Aluminum Alloy (6061)Dimensions: D: 136mm, H: 8.4mmFunction: A plate that holds a small sample cell. -
Name: 3100-Large Sample CellMaterial: Aluminum Alloy (6061)Dimensions: D: 138mm, H: 50mmFunction: Suitable for powdery, granular, or grass-type samples. -
Name: 3100-Large Cell PressMaterial: stainless steelDimensions: D: 128mm, H: 15mm (excluding handle)Function: Used with 3100-Large Sample cell for testing grass-type samples. -
Name: 3100-Rotating DiscMaterial: Aluminum Alloy (6061)Dimensions: D: 145mm, H: 16mmFunction:1. Carries sample cells, controlled by a motor to rotate samples;
2. Holds reference and standard components for referencing, self-check, and calibration.
Technical Specifications
|
Specification |
Description |
Specification |
Description |
|
Wavelength Range |
920-1660nm |
Dimensions |
L:370mm x W250mm x H146mm |
|
Resolution |
10nm |
Weight |
7 kg |
|
Spectroscopic Principle |
Array MEMS Micromirror + Grating |
Display |
7-inch Touch Screen |
|
Detector |
InGaAs Detector |
Operational Temperature |
5-45°C |
|
Baseline Noise |
≤0.0001AU |
Operating Humidity |
＜RH75% |
|
Wavelength Repeatability |
≤0.02nm |
Storage Temperature |
-20-60°C |
|
Wavelength Accuracy |
≤1nm |
Light Source |
Halogen-Tungsten Lamp |
|
Absorbance Repeatability |
≤0.0002AU |
Power Supply |
24V/3A |
|
Testing Time |
≤1min |
Power Consumption |
20W(average) |
|
Data Interval |
1nm |
Integrated Operating System within the Device |
Linux |
Downloads
IAS-3100 English.pdf
